MODEL TL-2300

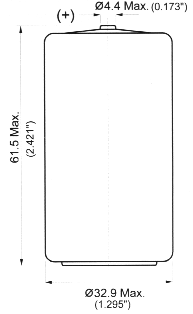

International size reference :D, ER32L615


TECHNICAL DATA

(Typical Values @+25'C for batteries stored for one year or less)

Nominal capacity @ 5mA TO 2V 16.5Ah
Rated voltage 3.6V
Maximum continuous current 230mA
Maximum pulse current capability 500mA
Rated 1 sec. pulse capability (to 3V) 100mA
Weight 92.5g (3.26oz.)
Operating temperature range -55'C to +85'C
U.L. Component recognition MH 12193


AVAILABLE TERMINATIONS
SUFFIX- /S STANDARD
SUFFIX- /T SOLDER TABS



Note: Any representations in this website concerning performance, are for informational purposes only and are not
construed as warranties either expressed or implied, of future performance.
